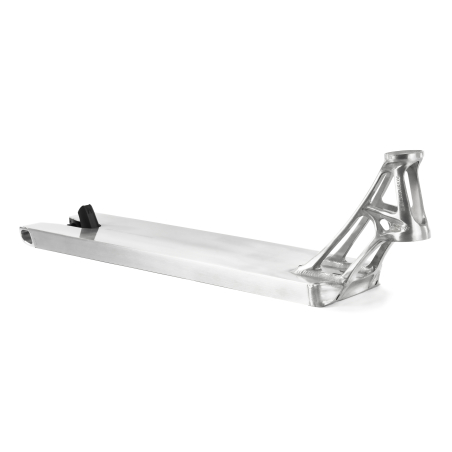

Ethic DTC Deck Pandemonium v2 Boxed Raw
21_3_in_540mm: 3760004845591
19_7_in_500mm: 3760004845577
22_8_in_580mm: 3760004845614
Data sheet
- Weight
- 2.75 lbs (1,250g)
- Deck Lenght
- 19.7 in (500mm)
21.3 in (540mm)
22.8 in (580mm) - Deck Width
- 5,5 in (140mm)
- Angle
- 83°
- 12 STD Compatible
- No
- End Deck Type
- Boxed
- Material
- Aluminium 6082
Description
Here is the Boxed version of Pandemonium V2.
The lightest boxed deck in the game.
Created and studied from every angle to achieve the ultimate in lightness, it arrives here 9 years after the iconic Pandemonium V1, in a new format.
Just like the classic V2 version, it benefits from all the technical advances made to make it as strong and light as possible. And it benefits from all the best Ethic has to offer in terms of grinds and slide (following the experience of the Lindworm V4): the back and front deck ends have been improved to ensure better glide and, above all, flawless durability.
2 cm wider than the V1 (140 mm / 5.51 in), it is also and above all more resistant than its predecessor.
hundreds of hours of simulations were carried out to obtain the most effective geometry possible, giving it 33% more resistance to the banana effect, as well as 40% more resistance on the neck.
now made from 6082 aluminium (slightly stronger than the usual 6061).
Now compatible with 120mm diameter wheels, it comes with a brand new fender for added lightness.
This deck also sees the arrival of the new torx male axles, which are stronger and more practical (only one spanner is needed to tighten the deck).
3 lengths are available: 500 mm (19.7 in) / 540 mm (21.3 in) / 580 mm (22.8 in)
2 colours: Black / Raw
The box includes a ready-to-install pre-cut grips, an additional classic brake and a Torx 40 wrench.
Specs:
- material: aluminum 6082-T6
- length: 9.7 in (500mm) / 21.3 in (540mm) / 22.8 in (580mm)
- width: 5.51 in (140mm)
- weight: 460: 500: 2.53 lbs (1150g) / 540: 2.62 lbs (1190g) / 580: 2.75 lbs (1250g)
- angle: 83°
- concave: radius 1200
- 7075-T6 deck ends with AED improved shape
- AED blunt plate improved
- 8 STD compatible
- 120mm wheels compatible
- gripsaver v2
- Torx 40 axles
- Fender 8 STD v2 (with switch diameter system)
- griptape included
- Torx 40 wrench included
- spare Nylon 8 STD brake v2 included
